Before mounting the jack, confirm that there will be NO interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Before installing, check for interference in all positions, including handle swing and swivel positions, if applicable. Check for interference again after installation is complete.

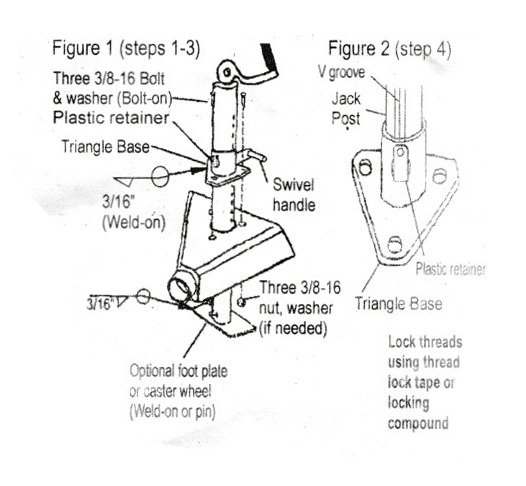

Triangle Bases are designed for mounting to trailers with “A” plate couplers. If tongue has bottom support plate added, open diameter of hole so that jack assembly can slide downward thru bottom support plate.
Warranty is void if this step is skipped. The plastic retainer falling out without a thread lock will be replaced.

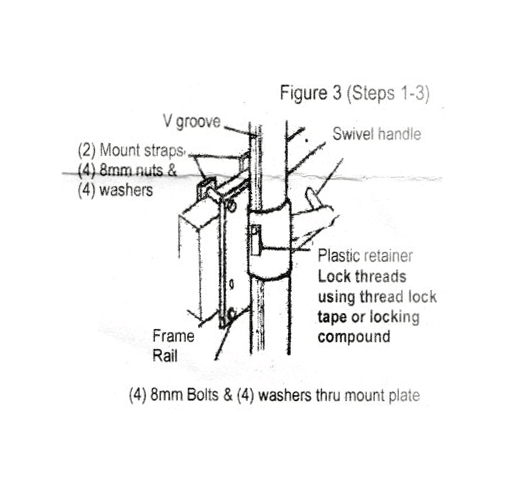

If using a side mount jack, ensure the mounting hole pattern fits your frame rail size (4" rail or 6" rail). The gap between the mounting holes and frame rail is not to exceed 1/16".
Warranty is void if this step is skipped. The plastic retainer falling out without a thread lock will not be replaced.
Limited Warranty. Future2Solutions LLC ("We" or "Us") warrants to the original consumer purchaser only ("You") that the product will be free from material defects for a period of (1) year for model RDJ-2K. The foregoing warranty is valid only if the installation and use of the product are in accordance with the product's instructions. There are no other warranties, express or implied, including the warranty of merchantability or fitness for a particular purpose. If the product does not comply with the applicable limited warranty, Your sole and exclusive remedy is that We will replace the product without charge to You and, within a reasonable time or at our option, refund the purchase price. This limited warranty is not transferable.
Limitations of the Warranty. This warranty does not cover: a) normal wear and tear; b) damage through abuse, neglect, misuse, or as a result of any accident or any manner; c) damage from misapplication, overloading, or improper installation, including welds; d) improper maintenance and repair, and e) product alteration in any manner by anyone other than Us with the sole exception of alterations made pursuant to the product instructions and in a workmanlike manner.
Obligations of the Purchaser. You must retain Your product receipt to verify the date of purchase and that You are the original consumer purchaser. Do not send products to be warrantied without first contacting us! To make a warranty claim, contact Us at the website or address listed below. Warranty claim instructions and authorization will be provided upon contact. The product and a copy of the receipt must be provided to Us in order to process Your warranty claim. Any returned product that is replaced or refunded by Us becomes our property. You will be responsible for return shipping costs.
Remedy Limits. Repair or replacement is Your sole remedy under this limited warranty or any other warranty related to the product. We shall not be liable for service or labor charges incurred in removing or replacing a product or any incidental or consequential damages of any kind.
Assumption of Risk. You acknowledge and agree that any use of the product for any other purpose other than the specified use(s) stated in the product instructions is Your own risk.
Governing Law. This limited warranty gives You specific legal rights, and You may have rights which vary from state. This limited warranty is governed by the laws of the State of Texas, without regards to rules pertaining to conflicts of law. The state courts located in Hopkins Country, Texas, shall have exclusive jurisdiction for any disputes relating to this product or warranty.
Future2Solutions LLC
P.O. Box 1174
Sulphur Springs, TX 75482
www.future2solutions.com
Read, understand, and follow all of these instructions and warnings (Instructions) before installing and using this product. Install and use this product only as specified in these instructions. Improper installation or use of this product may result in property damage, serious injury, and/or death. NEVER allow installation or use of this product by anyone without providing them with these instructions. You must read, understand, and follow all instructions and warnings for any products) to which this product is used in conjunction with or installed. Save these instructions with the product for use as a reference for any future installation and use of the product.
Warning: Failure to follow these warnings and instructions may result in property damage, serious bodily injury, and/or death.

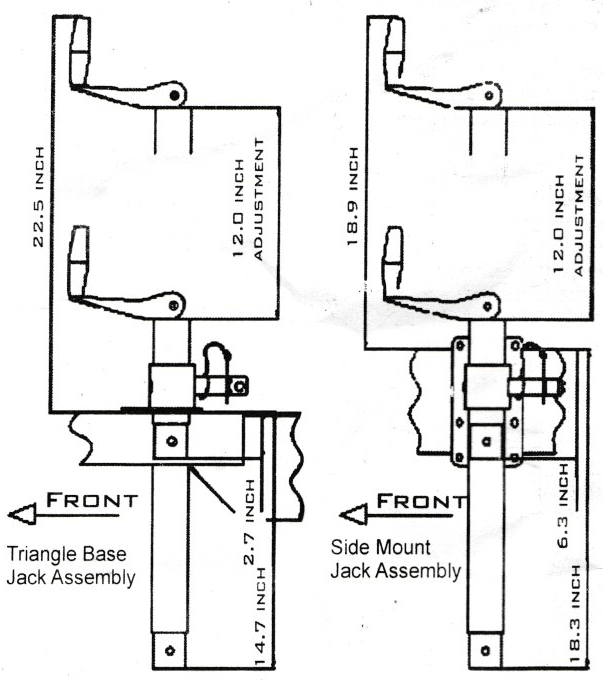

HOW TO USE: The Rapid Deployment Jack can be quickly lowered or raised approximately 12 inches when the jack is not loaded, or the trailer is not moving. To use the rapid deployment feature, remove the hitch pin clip, then firmly grip the jack post while rotating the swivel handle 180 degrees. Lower or raise the jack post to the desired elevation, rotate the swivel handle back into place, and position the jack up or down until the pin engages a hole in the jack post. Replace the hitch pin clip to lock the swivel handle. NEVER turn or pull the swivel handle while jack is supporting the load or the trailer is moving! The swivel handle MUST be secured by the hitch pin clip at all times except when the jack post is being lowered or raised using the rapid deployment feature. The hitch pin clip must be installed when the jack is supporting a load, when the jack is "jacking" the trailer, or the trailer is hitched to a tow vehicle. Illustrations showing the dimensions of the RDJ-2K and a photo of the swivel handle with the hitch pin clip installed are presented below.

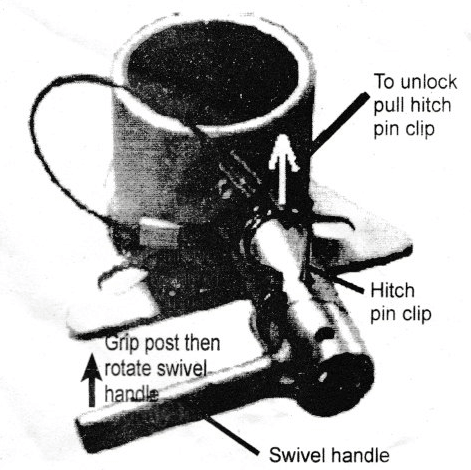

Photo of Triangle Base showing swivel handle locked with hitch pin clip installed. To unlock, pull the hitch pin clip upward until removed. Firmly grip the jack post before rotating the swivel handle 180 degrees. The hitch pin clip MUST be installed at all times except when using the rapid deployment feature of the RDJ-2K, as explained above.
